How Much Do Industrial Paint Coatings Cost? A Breakdown by Type & Surface

Industrial paint coatings are critical in maintaining the longevity, safety, and appearance of structures and equipment across various sectors. Whether used on steel bridges, concrete walls, machinery, or pipelines, these coatings protect surfaces from corrosion, environmental wear, and chemical exposure. However, understanding the costs associated with industrial paint coatings can be complex due to numerous factors: coating type, surface material, project size, environmental considerations, and labor costs all contribute to the final expense. This blog offers an in-depth look at the various elements that influence industrial paint coating costs, organized by coating type and substrate surface, to help professionals make informed budgeting decisions.

Factors That Influence Industrial Coating Costs

Before diving into the specific types of coatings and surfaces, it’s important to understand the broader factors that affect pricing. One of the most significant is the type of coating selected. Epoxy, polyurethane, zinc-rich primers, and fluoropolymer topcoats all vary widely in price per gallon, longevity, and performance under different environmental conditions. Each coating type also requires a specific preparation process, application method, and drying time, which can add to labor and equipment expenses.

Labor costs form another substantial portion of the overall budget. Skilled applicators are essential for ensuring the correct application and achieving the desired film thickness and finish. Depending on the project’s complexity, wages can differ based on region, certification requirements, and project scope. Environmental factors such as humidity, temperature, and the need for containment can increase the cost as well, especially when working with volatile organic compounds (VOCs) or in sensitive environments.

Surface condition and preparation also significantly affect total costs. A new steel surface might require only light cleaning, while a rusted or previously coated substrate may need abrasive blasting, chemical stripping, or other intensive preparation. Surface area plays a crucial role, as larger areas often benefit from economies of scale, whereas intricate or confined spaces require more labor-intensive approaches, increasing cost per square foot.

Cost Breakdown by Coating Type

Among the most commonly used industrial coatings are epoxies, polyurethanes, zinc-rich primers, acrylics, and fluoropolymers. Each comes with distinct properties and price ranges.

Epoxy coatings are widely favored for their excellent adhesion, chemical resistance, and durability. They are especially effective for concrete and steel in industrial settings. Epoxy systems typically cost between $3 to $7 per square foot when factoring in materials and labor. However, high-performance systems used in chemical plants or marine environments can reach $10 to $12 per square foot, particularly when multiple coats are required.

Polyurethane coatings are valued for their UV resistance, flexibility, and aesthetic finish. Often used as topcoats over epoxy primers, polyurethanes offer a glossy, durable finish for outdoor applications. These coatings typically cost $4 to $8 per square foot. The inclusion of polyurethanes in a multi-coat system will raise the overall price but significantly enhance longevity and appearance.

Zinc-rich primers provide cathodic protection to steel and are vital in high-corrosion areas such as offshore platforms and bridges. These coatings can cost between $5 and $9 per square foot due to their high zinc content and the necessity for specialized application techniques. They often serve as part of a multi-coat system, further raising total costs.

Acrylic coatings are a cost-effective choice, particularly for environments that don’t require extreme chemical or moisture resistance. They are easier to apply and dry faster than epoxies or polyurethanes, often costing $2 to $4 per square foot. While not as durable, they are suitable for interior use or temporary protective applications.

Fluoropolymer coatings represent the high end of the spectrum. Known for their exceptional weatherability, UV resistance, and longevity, they are used in high-end architectural and industrial applications. These systems can cost $10 to $15 per square foot or more, and are typically applied in multiple layers, requiring experienced applicators.

Cost Differences by Surface Type

The type of surface being coated—steel, concrete, aluminum, or composite materials—greatly influences both the type of coating used and the cost involved.

Steel is one of the most common substrates in industrial applications and typically requires surface preparation through abrasive blasting to achieve the required surface profile. This prep work, along with the need for corrosion-resistant systems such as zinc-rich primers followed by epoxy and polyurethane topcoats, increases overall cost. Depending on the system and conditions, coating steel surfaces ranges from $5 to $12 per square foot.

Concrete surfaces, prevalent in warehouses, manufacturing plants, and chemical facilities, often require patching, crack repair, and moisture testing before coating. Moisture-vapor emissions can necessitate special primers, adding to the expense. Epoxy systems are commonly used, costing around $3 to $9 per square foot depending on thickness and the number of coats. Floors exposed to heavy traffic or chemicals might require polyurethane or polyaspartic topcoats for enhanced durability, further increasing costs.

Aluminum, used in architectural facades and certain machinery, poses unique challenges due to its slick surface and tendency to oxidize. It often requires etching or conversion coatings before painting, particularly if a high-performance fluoropolymer finish is desired. Coating aluminum can range from $6 to $15 per square foot depending on preparation and system complexity.

Composite and fiberglass surfaces, while not as widespread, are used in niche industries like marine, aerospace, and utilities. These materials require specialized primers to ensure proper adhesion and are often coated with polyurethanes or epoxies. Costs here can vary significantly, often landing between $7 and $14 per square foot depending on shape and accessibility.

Application Methods and Their Effect on Cost

How an industrial coating is applied can have a substantial impact on both efficiency and pricing. The three most common methods are brush and roller, conventional spray, and airless or plural-component spray systems.

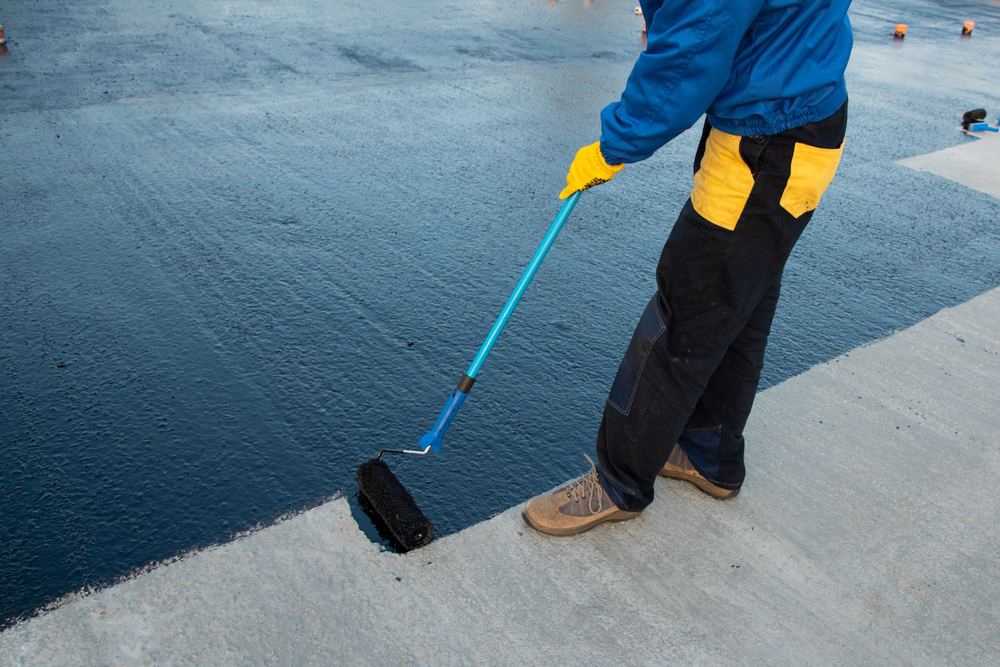

Brush and roller applications are suitable for small areas or where overspray must be controlled, such as in occupied buildings or sensitive environments. While they require less equipment, they are labor-intensive and slower, increasing labor costs per square foot.

Conventional spray systems provide better coverage and smoother finishes but require masking and protection from overspray, particularly in windy or enclosed conditions. They are faster than manual methods but use more material due to overspray and atomization losses.

Airless and plural-component sprayers are ideal for large-scale applications and high-build coatings like epoxies or polyurethanes. These systems reduce waste and increase speed, often lowering the cost per square foot for large projects. However, the initial setup cost and need for skilled operators can offset savings on smaller jobs.

In controlled environments such as paint booths or manufacturing facilities, robotic or automated systems may be used for consistency and efficiency. These setups have high initial costs but can be justified by reduced labor and increased throughput on repeat projects.

Budgeting for Long-Term Value

While upfront costs are a major consideration, the long-term value of a coating system should not be overlooked. Investing in high-performance coatings can reduce future maintenance, downtime, and replacement costs, offering a better return over time. Total lifecycle cost analysis often reveals that more expensive coatings provide superior value when measured across 10 to 20 years, especially in aggressive environments.

Maintenance schedules should also be factored into budgeting. Even the best coatings degrade over time due to UV exposure, chemical attack, or physical wear. Planning for periodic inspections and touch-ups can extend the lifespan of the system and avoid costly full replacements.

Additionally, working with experienced coating consultants or engineers can help specify the optimal system for the substrate and environment, preventing over- or under-specification. Misapplication, incompatible materials, or environmental noncompliance can lead to coating failure and significant remedial costs.

Ultimately, the cost of industrial paint coatings is not a one-size-fits-all metric. A small indoor project may cost $2 per square foot, while a complex marine structure might exceed $15 per square foot. Understanding the interplay of coating type, surface material, application method, and long-term maintenance requirements is essential for accurate budgeting and successful outcomes.

Conclusion

While industrial paint coating costs vary widely, they can be effectively managed through strategic planning, appropriate material selection, and skilled application. Investing wisely in coatings not only protects assets but ensures long-term operational efficiency and safety.
